CN-SEAMLESS
CUTTING EDGE TECH
RATED CUTTING CAPACITY
5″ Thick Steel
(127mm)
Diameter RAnge
68”
(1727mm)
HEIGHT CONTROL
2 1/4”
(57mm)
WEIGHT
9.1 kg
MACH 1

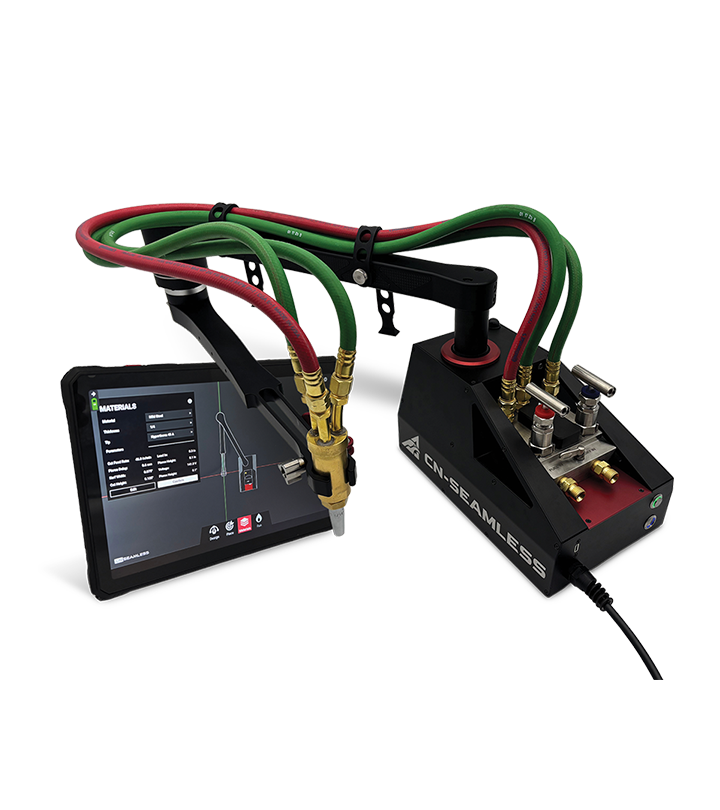

The Mach 1 brings robotic precision to fabrication work in a compact, portable package built for demanding environments. With a 7” x 11” base footprint, button activated mag-base, 2 1/4” height control and flexible mounting options, it supports accurate setup across a wide range of site conditions. Wireless control, dedicated tie off points and a maintenance-free design make it easy to carry, position and deploy.
FEATURES:
- 68” diameter range with full wrap-around capability
- 20 lbs for one-handed carrying and easy site movement
- Wireless control from up to 100’ away
- Horizontal, vertical and overhead mounting options
- Factory-calibrated and maintenance-free operation
- Quick-swap attachments for flexible cutting applications
MACH 1 ATTACHMENTS

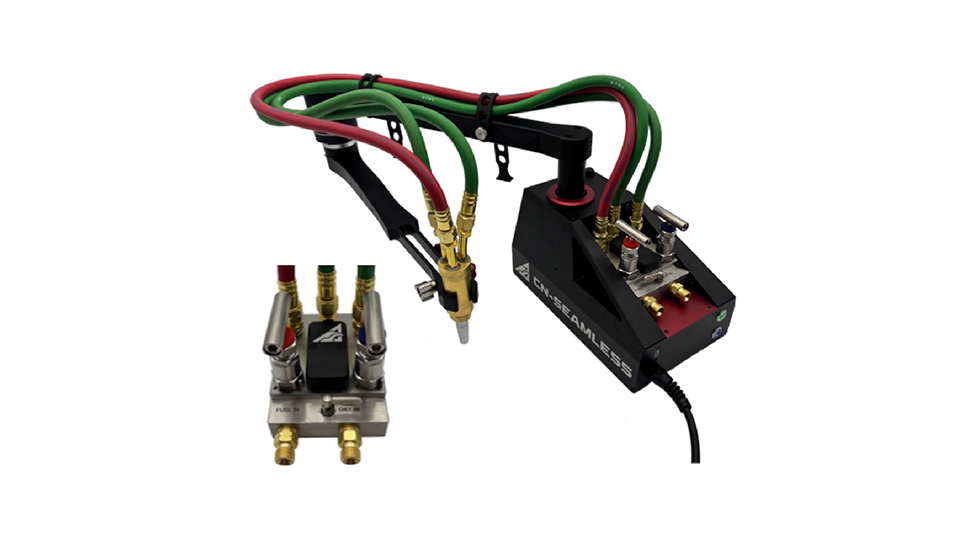

Oxy-fuel Attachment
The Oxy-Fuel Attachment gives the Mach 1 reliable cutting capability for heavy steel applications. Designed for field fabrication and repair work, it supports acetylene, propane and alternative fuels, with automatic cutting jet control and manual pre-heat valves for greater operator control.
MAIN FEATURES:
- Rated cutting capacity up to 5″ thick steel
- Compatible with acetylene, propane & alternative fuels
- Automatic cutting jet control
- Manual pre-heat valves

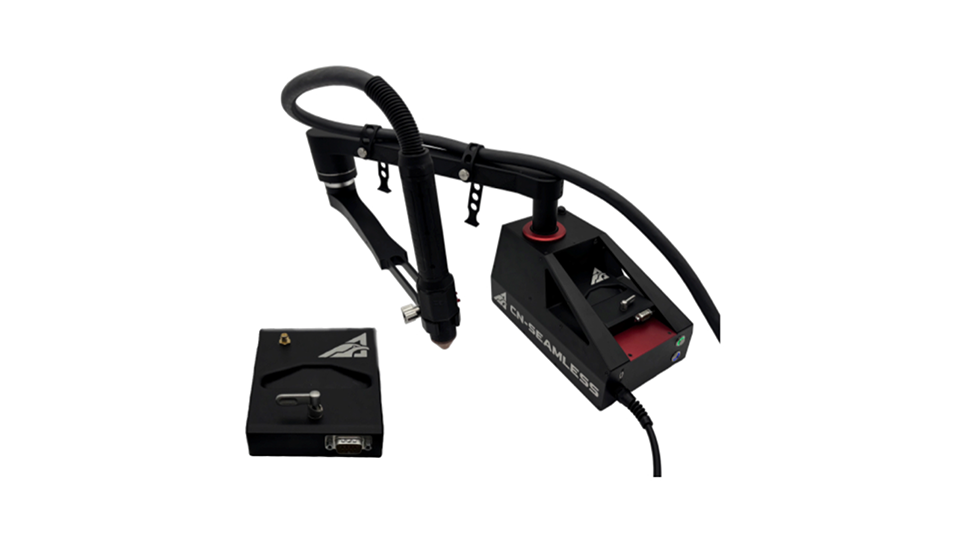

Plasma Attachment
The Plasma Attachment expands the Mach 1 for precise cutting across steel, aluminium, stainless steel and more. Supporting up to 125A torches with torch height control and ohmic probing, it provides a flexible option for clean, accurate plasma cutting on site.
MAIN FEATURES:
- Supports up to 125A torches
- Cut steel, aluminum, stainless and more
- Torch height control
- Ohmic Probing Cable
- 15 ft Plasma Control Cable
WHAT SETS CN-SEAMLESS APART
Revolutionising portable fabrication.
Magbase
Get up to 350 lbs of clamping force at the press of a button. Weighing just 25 lbs, the Mach 1 can mount vertically or upside down directly to your workpiece.
All Metal Frame
25 lbs of machined aluminum. Dust, water and shock resistant. Designed to thrive in the harshest environments.
68" Cutting Range
Full reach over the 68” diameter cutting range and 2.25” of vertical control. Intuitive repositioning enables seamless cutting over an infinite range.
Quick-Change
Tool-less swapping between
oxy-fuel and plasma cutting in seconds. Welding, bevelling and much more coming soon. Need something specialized?
Wireless Control
Operate while up to 100 feet away using the included rugged tablet. Apprentices and seasoned fabricators get up to speed in just a few minutes.

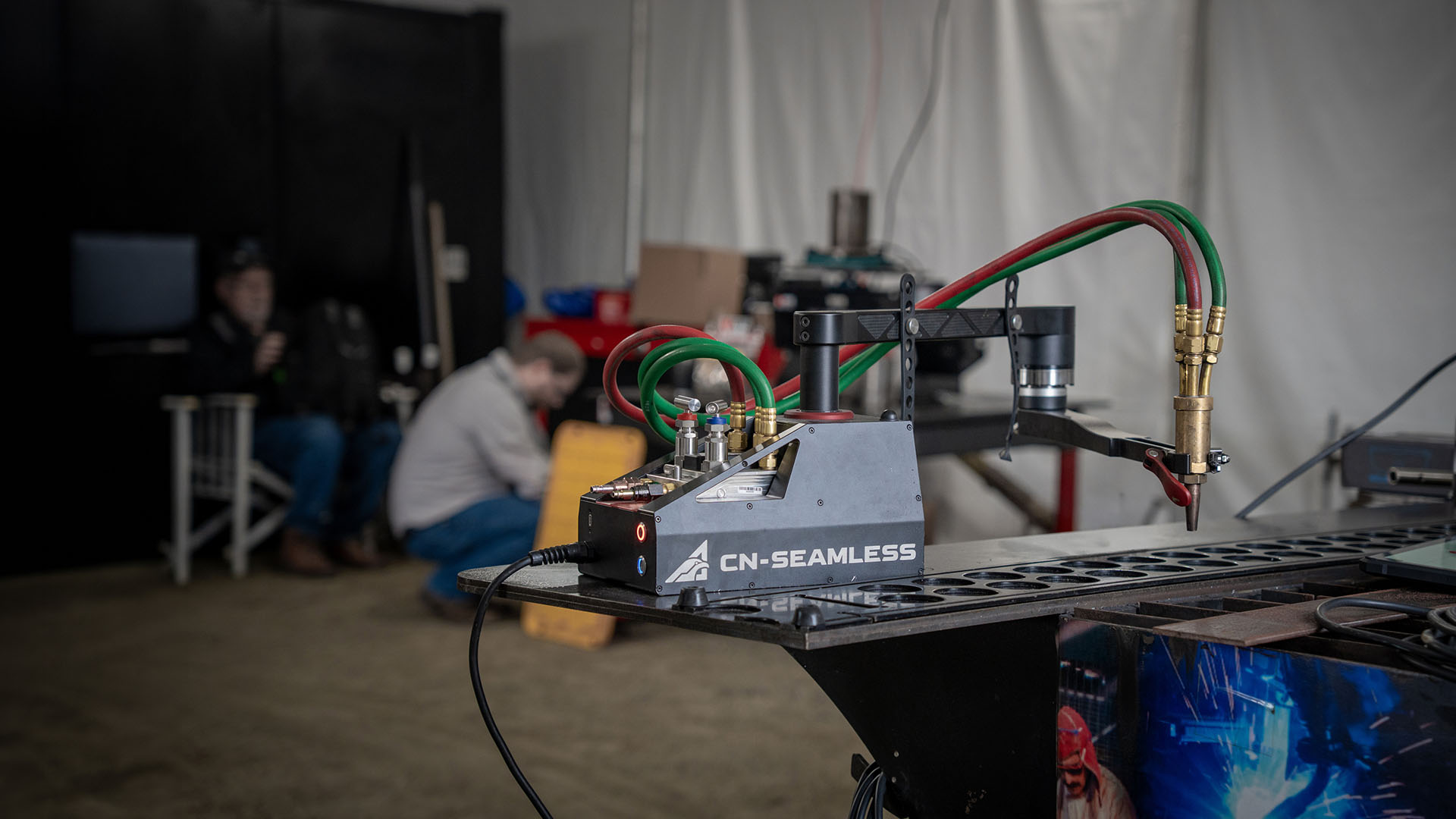

PROVEN IN THE FIELD
The Mach 1 combines secure magnetic mounting with smart CNC control, giving fabricators greater accuracy and flexibility across demanding site conditions.
- Position securely for horizontal, vertical and overhead cutting
- Trace point-to-point, import CAD files or use preloaded shapes
- Deliver accurate, repeatable cuts across a wide range of applications
Horizontal mounting
Vertical mounting
Overhead mounting
Tie-off points
RESOURCES

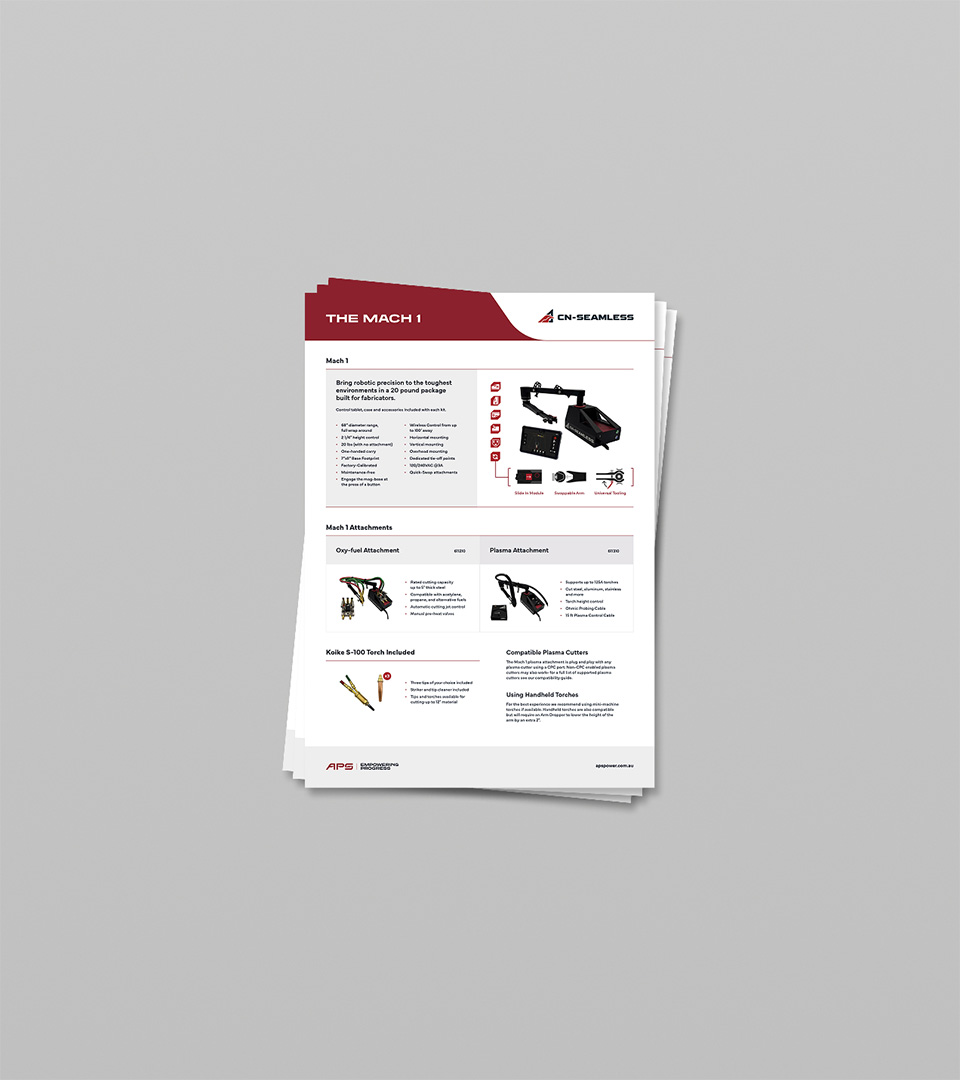

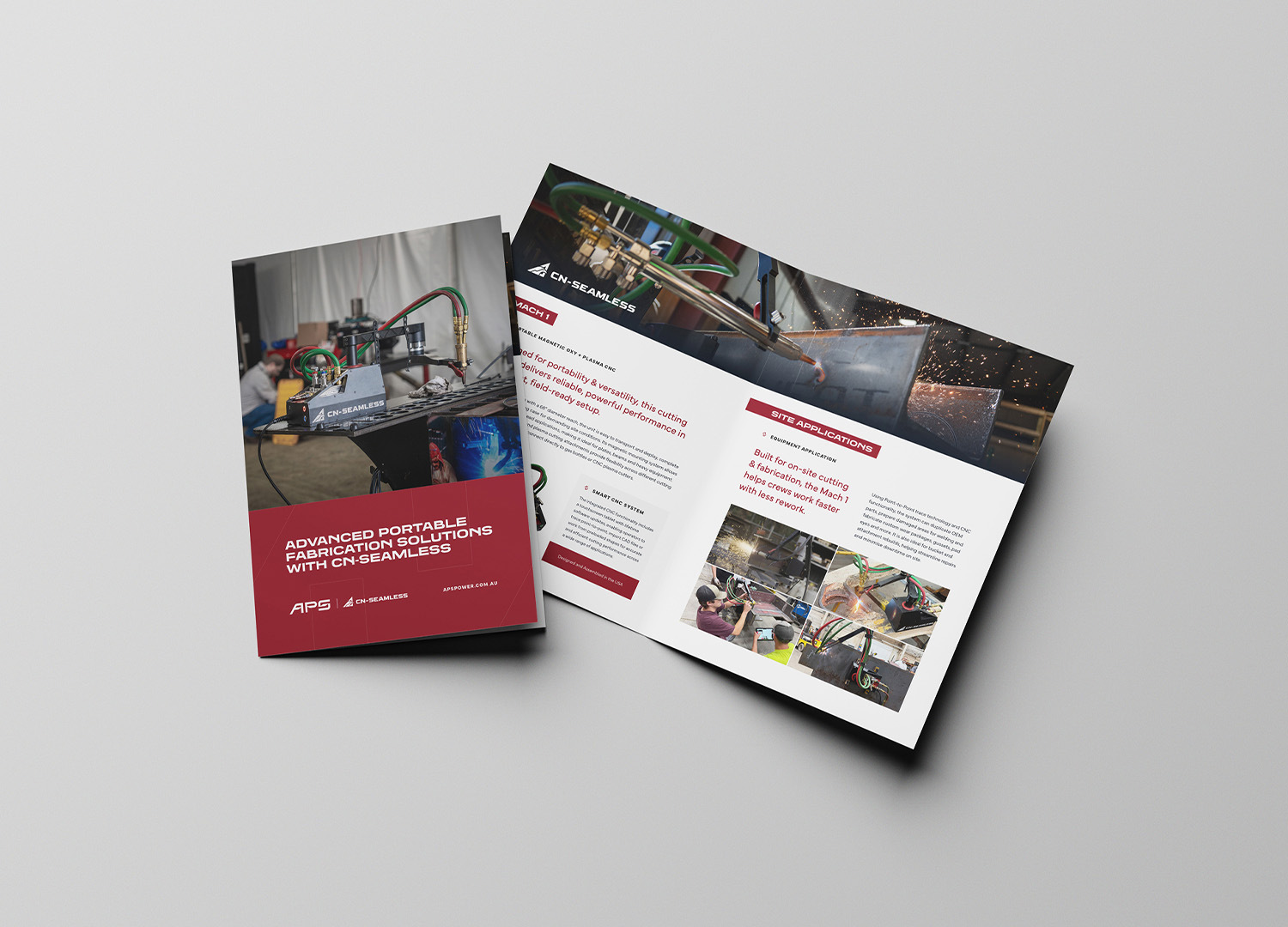

CN-Seamless Documentation
Frequently asked questions
What is the CN-Seamless Mach 1 used for?
The Mach 1 is a portable CNC cutting system designed for on-site fabrication, repair and maintenance work. It can be used to duplicate parts, prepare damaged areas for welding, fabricate custom wear packages, cut gussets and pads, and support bucket or attachment rebuilds.
Can the Mach 1 be used with both oxy-fuel and plasma cutting?
Yes. The Mach 1 supports quick-swap oxy-fuel and plasma attachments, giving operators flexibility across different cutting requirements. The oxy-fuel attachment is suited to heavy steel cutting, while the plasma attachment can support cutting across steel, aluminium, stainless steel and more.
How portable is the Mach 1?
The Mach 1 is designed for field use, with a compact 7” x 11” base footprint and a 20 lb weight without attachments. Its one-handed carry design, control tablet, case and included accessories make it easy to transport, set up and deploy across site environments.
What mounting options does the Mach 1 support?
The Mach 1 uses a button-activated magnetic base and can be mounted horizontally, vertically or overhead. Dedicated tie-off points also help support secure operation in more complex or challenging site setups.
How does the smart CNC system improve cutting accuracy?
The integrated CNC system allows operators to trace point-to-point, import CAD files or use preloaded shapes for accurate, repeatable cuts. This helps reduce rework, improve consistency and support more efficient fabrication across a wide range of applications.
