INSTAGRID
All in One Power
Rated output power
3.6 kW (16 A)
PEAK POWER OUTPUT
18 kW (80 A)
Rated energy capacity
2.1 kWh
Weight
20 kg
TRUSTED BY

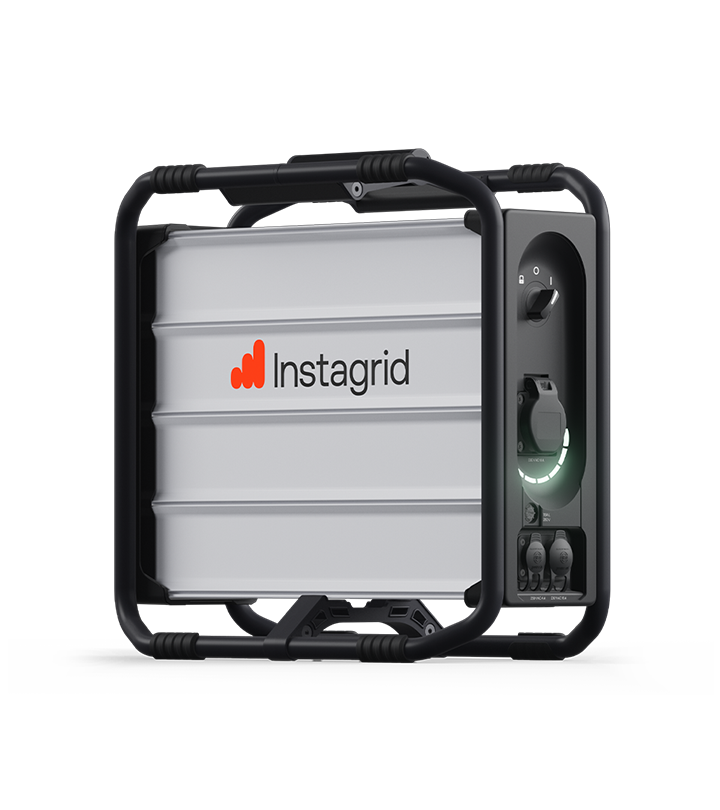

INSTAGRID ONE
The portable, grid-quality power supply for professionals. Operate your corded 230 V devices anytime – independent of the grid, reliable, and hassle-free. Instagrid ONE lets you start working the moment you arrive on site, while reducing costs with zero downtime and low operating expenses.
FEATURES:
- 3,600 W continuous power – Runs anything with a type F plug
- 18 kW peak power – Maximum performance
- 20 kg – Can be carried in one hand
- Built-in IoT connecivity – Access location, performance data, and more
- IP54 – Built for reliable use in harsh conditions
EXPANDING YOUR SYSTEM

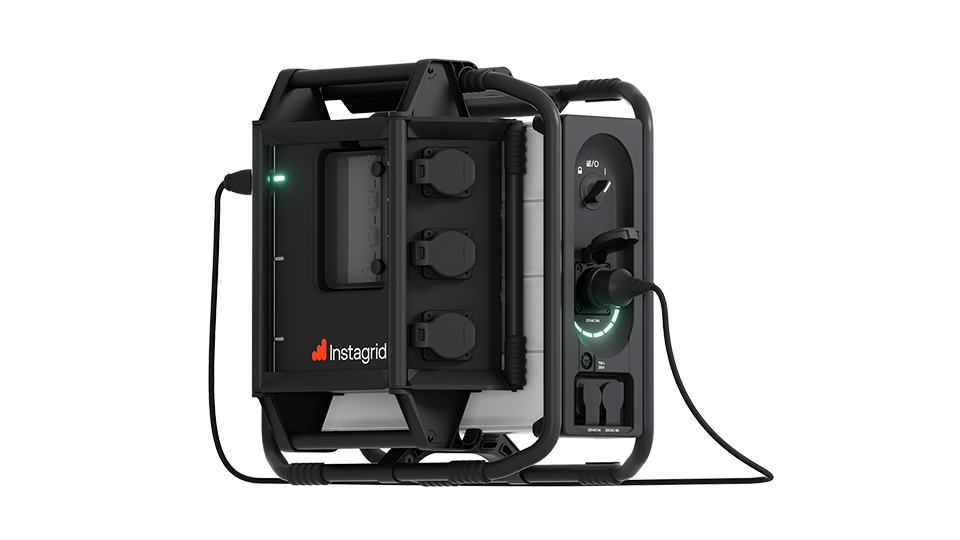

INSTAGRID LINK
The smart safety power distributor that lets you connect up to three Instagrid ONE units into a large 230 V power supply with a capacity of up to 6.3 kWh for long lasting applications. In addition, you can use Instagrid LINK together with Instagrid ONE as a backup system that automatically takes over in case of a grid power outage.
MAIN FEATURES:
- Output voltage: 230 V AC / 50 Hz
- Output current: 16 A
- Switching time: < 20 ms
- Weight: 4.5 kg

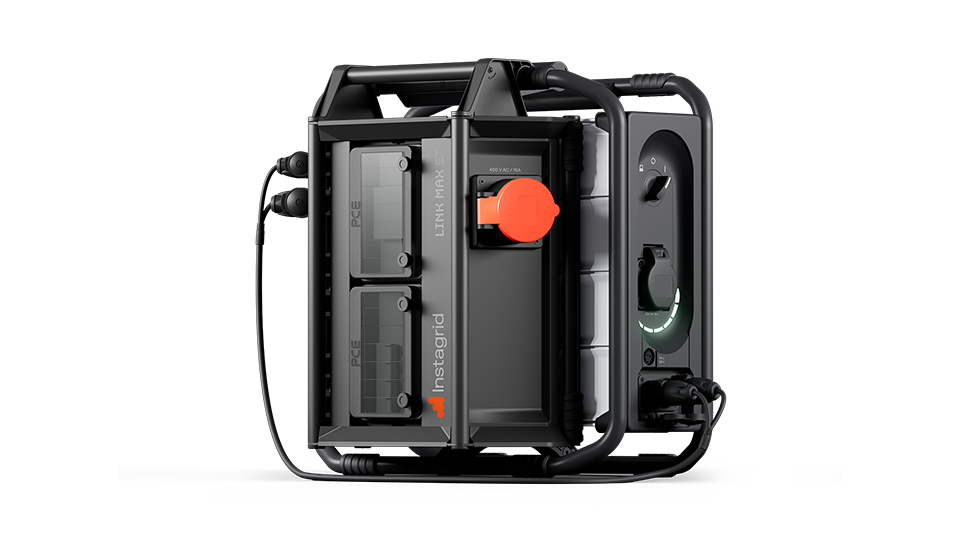

INSTAGRID LINK MAX
The expansion that combines the power of three Instagrid ONE units into one powerful 400 V output with 16 A.
3-Phase electricity more compact than ever – easy to set up by a single person.
MAIN FEATURES:
- Output voltage: 400 V AC / 50 Hz
- Output current: 16 A
- Peak power: 54 kW
- Weight: 5.1 kg
Why Instagrid one?
What sets it apart from any other solution.
Cost Savings
Instagrid ONE saves up to 80 % of the costs you spend on running a generator over a time period of 4 years.
Ease of use
Instagrid ONE removes the constraints of a generator enabling you to carry and use it anywhere and even indoors.
Reliability
No servicing, no oil changes, no engine wear. Maximum uptime and dependable power, ready whenever you are.
Health & Safety
No fumes, no refueling risks and no noise. Safe to use indoors and around people without additional precautions.
Environment
Zero emissions and no noise pollution. A cleaner way to power your work and perfect way to reach your sustainability goals.
PROJECTS PROVEN IN THE FIELD
Instagrid app provides a fully-connected experience that enhances convenience, data accessibility, security, and fleet management for your Instagrid products.
- Get latest software and feature releases via Bluetooth updates
- Monitor your fleet and access detailed unit information
- Use GPS and LTE to track your device and protect against theft
Fleet management
Locations
Status information
Notifications
RESOURCES
How To Video & Downloads
Frequently asked questions
In what temperature range can I safely charge my unit?
You can charge your unit between 0 °C and 45 °C. If the temperature drops below 0°C or exceeds 45 °C during charging it stops the charging process. If the temperature was only slightly above or below the limit and comes back to the allowed range, it automatically continues the charging process. If the temperature drops below 0°C goes above 45°C significantly it will stop charging completely and will not automatically continue charging even if the temperatures go back to the allowed range. In this case set the unit to transport mode, disconnect the charging cable and restart the charging process again.
Can I use my unit in very hot or cold environments?
You can use your unit in ambient temperatures between -20 °C and 60 °C.
What happens at too high or too low temperatures with my Instagrid ONE unit?
Instagrid ONE shows a yellow blinking light and stays off when its inner temperature is below -20 °C or above 60 °C at the moment when you try to turn it on. If the unit heats up and exceeds 60°C significantly during use it turns off and shows a yellow blinking light. Turn the unit off and reduce the load or move the unit to a suitable temperature environment to reset the alarm. The same applies if the temperature drops to below -20 °C during use, even though this is very unlikely as the unit generates enough heat to permanently stay above -20 °C during continues use.
How long does it take a unit to warm up at room temperature to start charging when it was stored outside at - 20 °C?
It takes roughly 1 hour until the unit warmed up enough at room temperature to start the charging process.
What are the requirements for the power source I want to use to charge my Instagrid ONE unit?
Instagrid ONE needs a stable AC voltage source that delivers between 120 V and 240 V AC and minimum 4 A of current. This results in a power demand of 500 W at 120 V and 950 W at 230 V. If your power source fulfils these requirements, you can use it to charge your Instagrid ONE.
